A Complete Guide for Dubai Property Snagging ®

Property snagging in Dubai is no longer about just visual checks or ticking boxes. With modern construction methods, fast-track handovers, and complex MEP systems, professional snagging today is 100% tool-driven. Advanced test and measurement instruments allow inspectors to uncover defects that are invisible to the naked eye—defects that could cost homeowners tens or even hundreds of thousands of dirhams after handover.

This blog explains how professional snagging tools are actually used on-site, step by step, during a real property inspection in Dubai—based on industry-grade test & measurement equipment

Why Tools Matter in Dubai Property Snagging ®

Dubai properties are exposed to:

• Extreme heat and humidity
• Heavy AC loads running 10–12 months a year
• High water pressure systems
• Fast construction timelines

Because of this, many defects do not show immediately. Professional tools help inspectors detect:

• Hidden electrical faults
• Water leakage inside walls
• AC performance failures
• Poor earthing and safety risks
• Substandard installation quality

Without these tools, a “snagging inspection” becomes nothing more than a walkthrough.

Electrical Testing Tools in Property Snagging

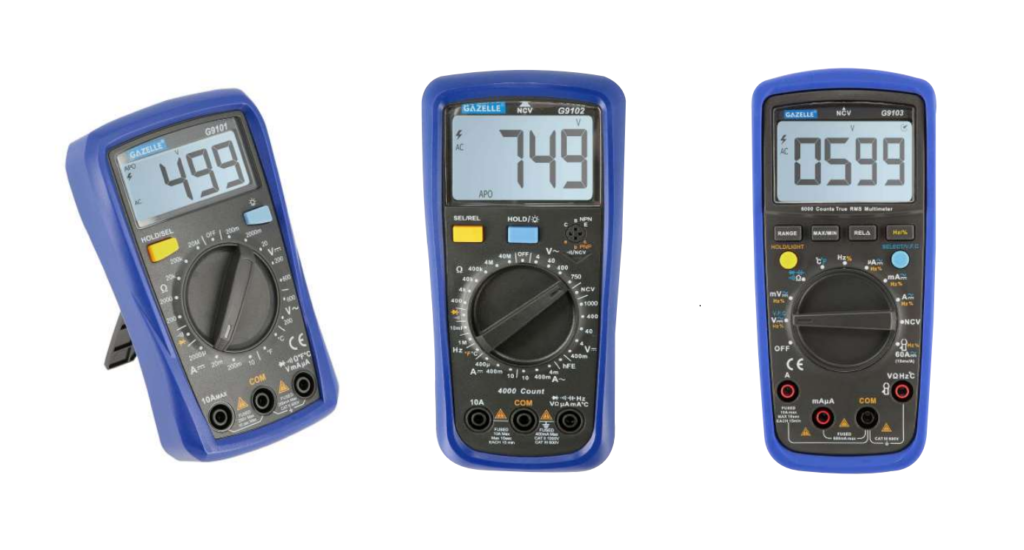

Digital Multimeters & True RMS Multimeters

During snagging, inspectors use digital multimeters to:

• Verify correct voltage at sockets and switches
• Check continuity in wiring
• Detect loose or faulty electrical connections
• Measure resistance and current draw

True RMS multimeters are especially important in Dubai villas and apartments where inverter AC systems and variable loads are common. They provide accurate readings even with fluctuating electrical signals.

Why this matters:
Incorrect voltage, loose wiring, or load imbalance can cause appliance damage, tripping breakers, or fire risks after handover.

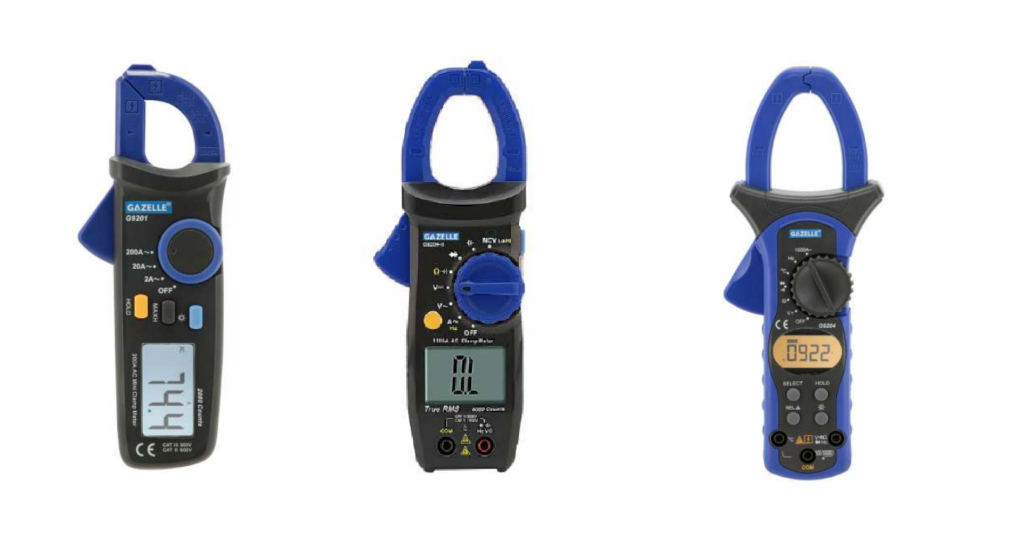

Clamp Meters (200A to 1000A)

Clamp meters are used without disconnecting cables. Inspectors use them to:

• Measure AC load on DB circuits
• Check AC compressor current draw
• Identify overloaded circuits
• Confirm proper phase balancing

In villas, clamp meters are essential for checking central AC systems, water heaters, EV chargers, and kitchen circuits.

Hidden defect uncovered:
An AC unit that “works” but draws abnormal current—leading to early compressor failure.

Non-Contact Voltage Detectors

These tools are used as a first safety check:

• Confirm circuits are live or dead
• Identify live wires behind switch plates
• Detect unsafe exposed conductors

They allow inspectors to work safely while still identifying dangerous installation errors.

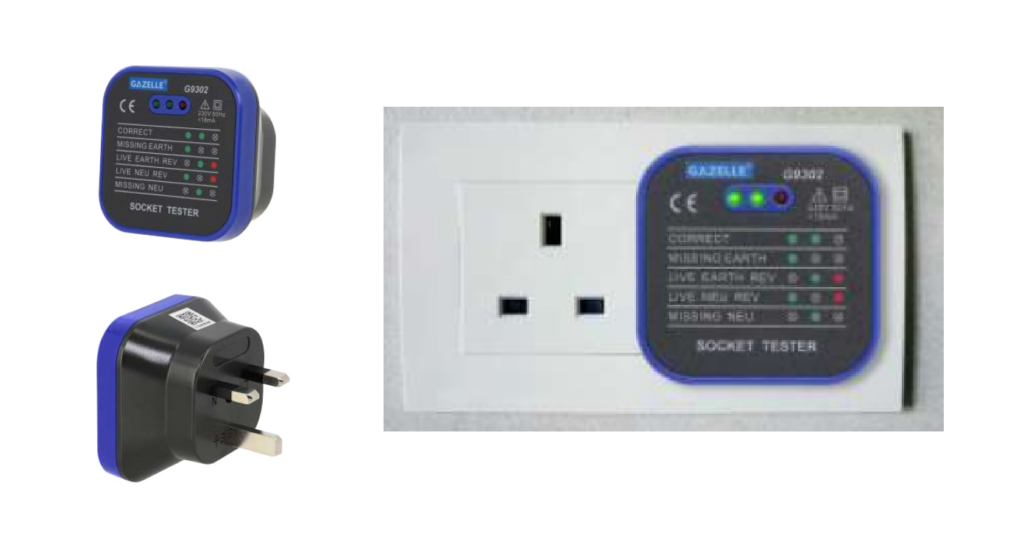

Socket Testers

Socket testers are plugged directly into wall sockets to instantly detect:

• Missing earth
• Live-neutral reversal
• Incorrect polarity
• Unsafe wiring

This is critical in Dubai homes where poor earthing is one of the most common safety defects.

Advanced Electrical Safety Testing

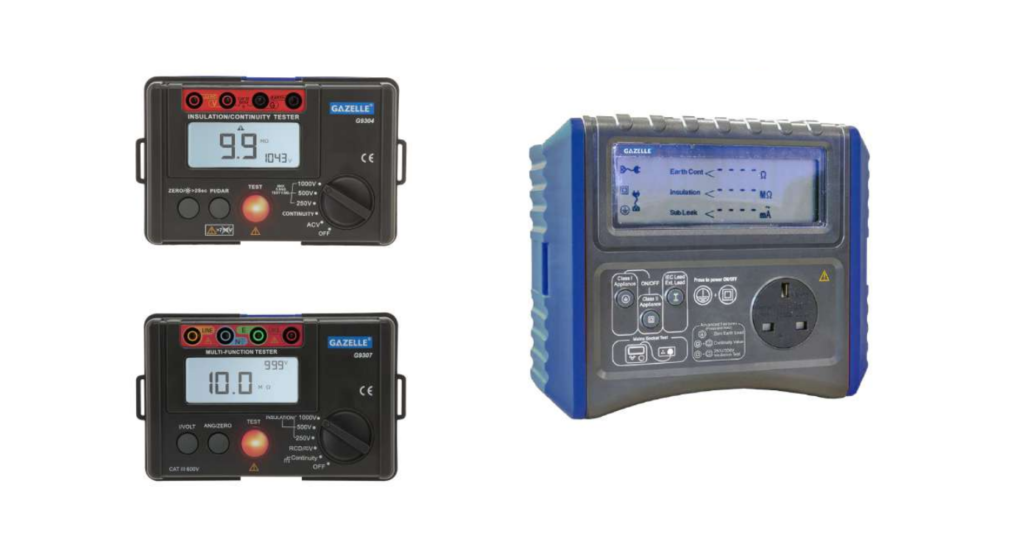

Insulation Resistance Testers (Megger)

Insulation testers apply high voltage (250V / 500V / 1000V) to:

• Detect insulation breakdown in cables
• Identify moisture intrusion inside conduits
• Assess long-term electrical safety

This test is crucial during:

• Pre-handover inspections
• DLP (Defects Liability Period) inspections

Why it matters:
Insulation failure may not trip breakers immediately but can cause gradual overheating and serious fire risks.

Earth Resistance Testers

These tools verify whether the earthing system is actually effective. Inspectors use them to:

• Measure earth resistance values
• Confirm grounding compliance
• Test lightning and safety earthing

Many properties fail earthing tests even though earth wires are installed.

RCD / ELCB Testers

RCD testers check:

• Trip time
• Trip current
• Correct operation of safety breakers

An RCD that does not trip within milliseconds is a life safety hazard.

Thermal & Moisture Detection in Snagging

Thermal Imaging Cameras

Thermal cameras are one of the most powerful snagging tools. They are used to:

• Detect AC cooling loss inside walls
• Identify water leaks behind tiles
• Find overheated electrical points
• Spot insulation gaps

Inspectors scan:

• Ceilings
• External walls
• Bathrooms
• AC ducts
• Electrical panels

Real example:
A wall looks perfect—but thermal imaging shows a cold patch caused by a concealed pipe leak.

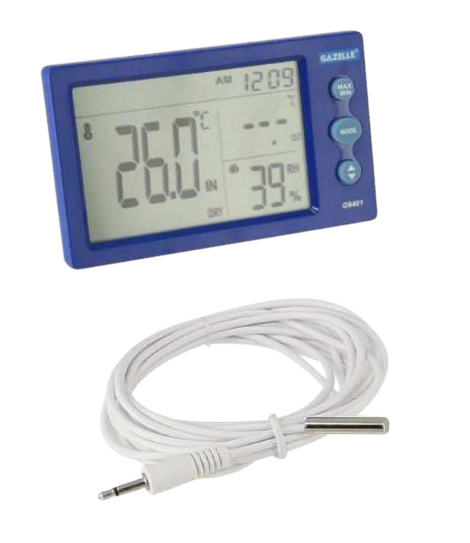

Temperature & Humidity Meter

The temperature and humidity meter is a critical tool used during property snagging in Dubai to assess indoor comfort, AC performance, and moisture risk. Inspectors use this tool to compare the actual room temperature with the thermostat setting, ensuring the air conditioning system is cooling effectively.

Humidity readings help identify environments prone to condensation, mold growth, and hidden moisture issues, especially in bedrooms, bathrooms, and closed spaces. Abnormally high humidity often indicates poor ventilation, AC imbalance, or early-stage water ingress, which may not yet be visible.

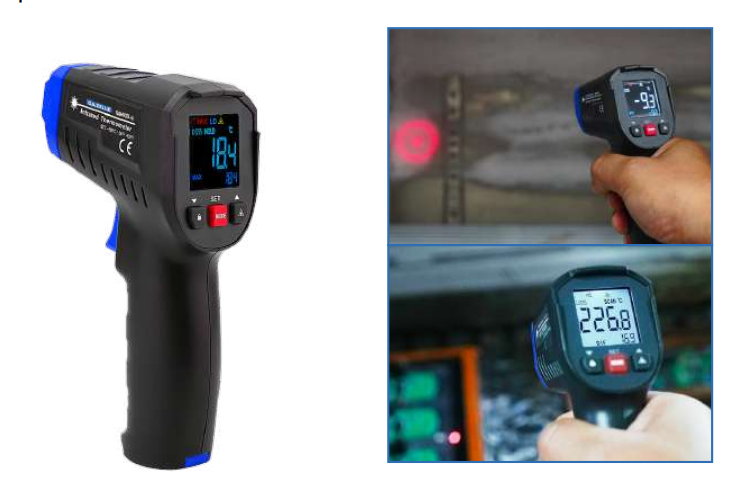

Mini Contactless IR Thermometer

The mini contactless infrared thermometer allows inspectors to measure surface temperatures safely from a distance. During snagging inspections, it is commonly used to check electrical panels, AC components, motors, and piping for overheating.

This tool helps identify loose electrical connections, overloaded circuits, and malfunctioning equipment without physical contact. In Dubai properties, where electrical loads are high, this tool is essential for early detection of overheating risks.

Thermal Imager

The thermal imager is one of the most powerful diagnostic tools used in professional property snagging in Dubai. Unlike visual inspections, a thermal camera allows inspectors to see temperature differences behind walls, ceilings, floors, and equipment, revealing defects that are completely invisible to the naked eye.

How It’s Used During Property Snagging

During an inspection, the thermal imager is used to scan large areas quickly and safely, including:

• Electrical panels & switchgear
  Identifies overheating breakers, loose connections, overloaded circuits, and imbalance issues before they become fire hazards.
• HVAC systems & ducting
  Detects cooling loss, blocked ducts, insulation failures, and uneven air distribution—common issues in Dubai’s high-AC-load environment.
• Walls, ceilings & floors
  Reveals hidden water leaks, damp patches, and insulation gaps caused by plumbing faults or failed waterproofing.
• Bathrooms, kitchens & balconies
  Confirms moisture intrusion behind tiles and membranes, often before visible damage appears.

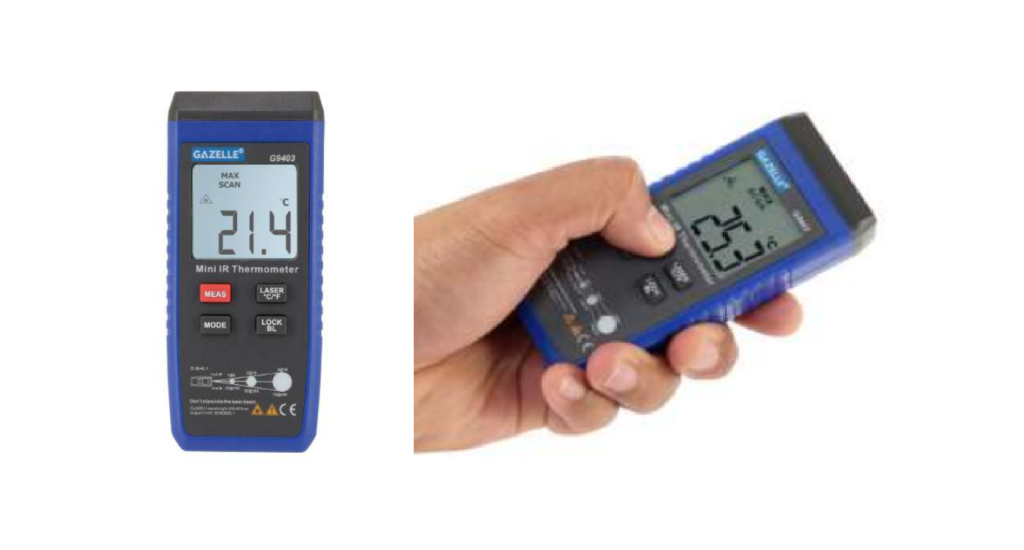

Mini Infrared Thermometer

This infrared thermometer is used to capture quick and precise temperature readings in hard-to-reach areas. Inspectors use it to check AC air outlets, chilled water pipes, hot water lines, and mechanical equipment.

Temperature inconsistencies often reveal blocked ducts, insulation failures, or poor system balancing, making this tool extremely valuable during HVAC snagging inspections.

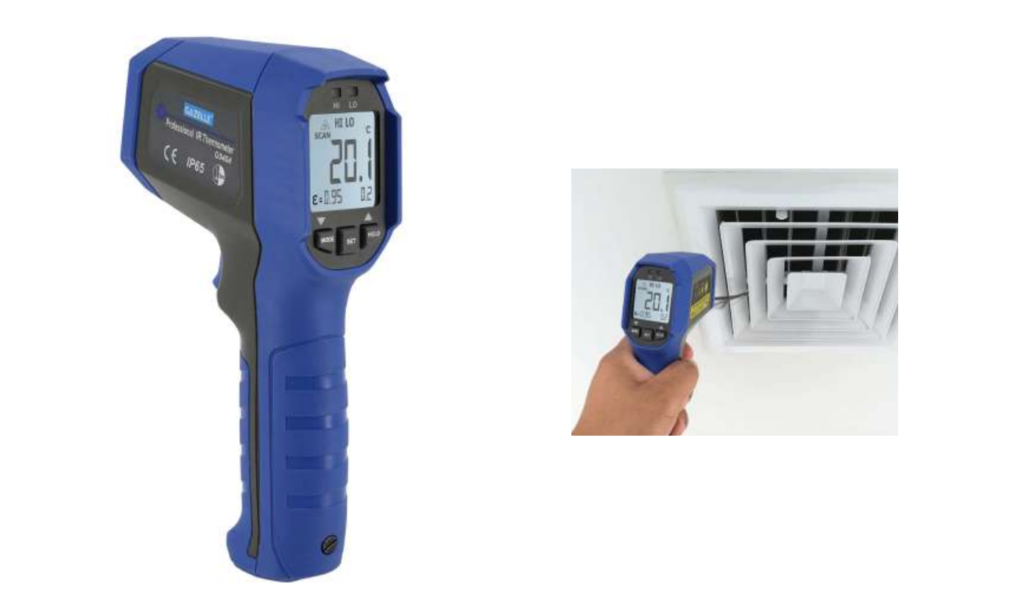

Contactless IR Thermometer

The contactless IR thermometer is a more advanced model used for larger surface scans. Inspectors rely on it to assess AC diffuser output temperatures, electrical panel hotspots, and exposed mechanical systems.

It is especially useful when inspecting moving or energized equipment, allowing inspectors to detect abnormal heat patterns without interrupting operation or risking safety.

Mini Temperature & Humidity Meter

This Bluetooth-enabled meter is used for data logging and trend analysis during professional inspections. Inspectors deploy it in rooms to monitor temperature and humidity over time, particularly in properties with suspected ventilation or moisture issues.

The logged data provides strong evidence in snagging reports, helping developers and owners understand long-term comfort issues rather than single-point readings.

Mini Sound Level Meter

Noise complaints are common after handover. This sound level meter allows inspectors to measure actual noise levels from:

• AC units
• Exhaust fans
• Mechanical rooms
• External sources

Using this tool, inspectors can confirm whether noise levels exceed acceptable limits and document acoustic performance issues with accurate decibel readings—critical for post-handover disputes.

Mini Light Meter

Lighting is often visually acceptable but technically insufficient. The light meter measures illumination levels (lux) to verify compliance with recommended lighting standards for living rooms, kitchens, corridors, and workspaces.

This tool helps identify poor lighting distribution, insufficient fixture output, or incorrect installation, especially in apartments and commercial units.

Mini Anemometer

The mini anemometer measures air velocity and airflow, making it essential for HVAC snagging. Inspectors use it to confirm whether each room is receiving adequate and balanced airflow from AC diffusers.

Low airflow often indicates duct leakage, poor design, blocked filters, or incorrect balancing, even when the AC unit appears to be functioning normally

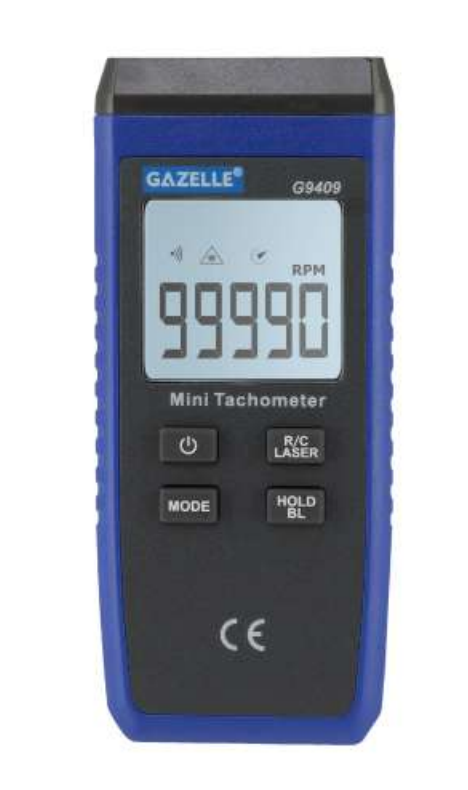

Laser Tachometer

The laser tachometer is used to measure rotational speed (RPM) of motors and mechanical equipment without contact. During property snagging, inspectors use it to check:

• Exhaust fan speeds
• Ventilation systems
• Motor-driven equipment

Incorrect RPM readings may indicate mechanical wear, incorrect installation, or power supply issues, affecting system efficiency and lifespan.

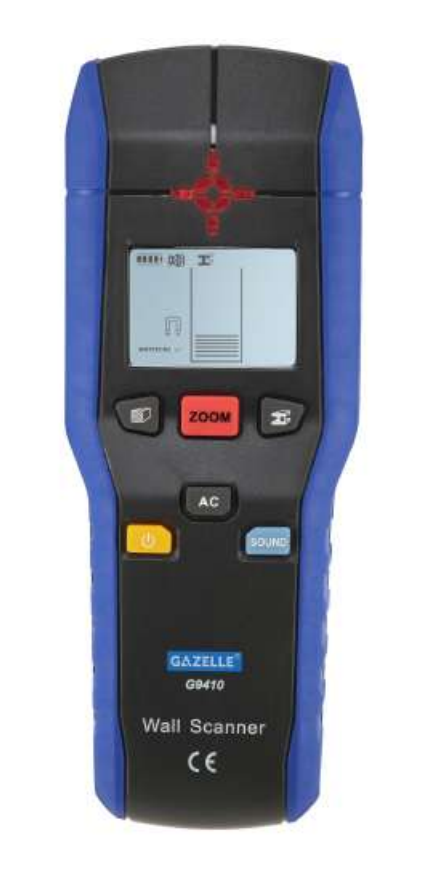

Wall Scanner

The wall scanner is one of the most important non-destructive diagnostic tools used during snagging. Inspectors use it to detect:

• Electrical wiring
• Metal pipes
• Wooden structures
• Embedded objects behind walls

This tool helps identify unsafe installations, incorrect routing, and potential drilling hazards. It is also useful when investigating suspected concealed services or planning rectification works.

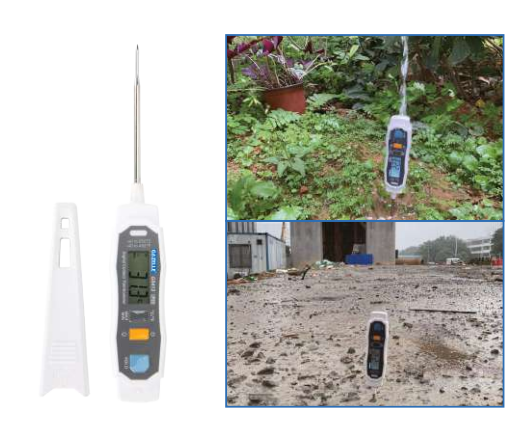

Digital Contact Thermometer

The digital contact thermometer is used during property snagging to obtain direct and highly accurate temperature readings from physical surfaces and materials. Unlike infrared thermometers, this tool requires contact, making it ideal for verifying actual water temperatures, pipe surface temperatures, and HVAC component readings.

During inspections, engineers use this tool to:

• Check hot water outlet temperatures at washbasins and showers
• Verify chilled water pipe temperatures
• Confirm surface temperatures where precise readings are required

Its IP-rated protection allows use in outdoor areas, wet zones, and utility spaces, making it suitable for villas, balconies, plant rooms, and service areas. Abnormal readings may indicate faulty mixing valves, insulation issues, or system imbalance.

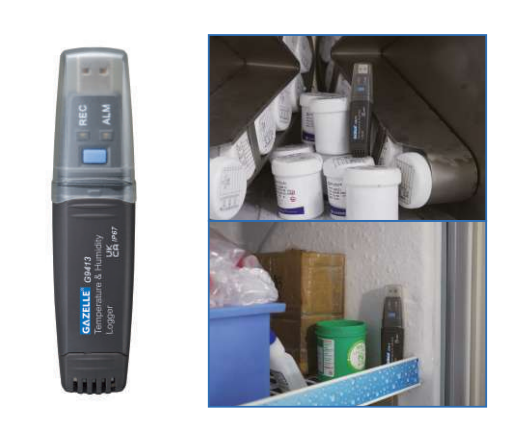

Temperature and Humidity Logger

The temperature and humidity logger is a data-logging tool used when short-term readings are not enough. In Dubai property snagging, it is especially valuable for identifying intermittent or long-term environmental issues.

Inspectors deploy this logger in:

• Bedrooms with condensation complaints
• Closed rooms with suspected ventilation issues
• Storage areas and maid rooms
• Properties with recurring mold or odor concerns

By recording temperature and humidity over extended periods, this tool provides objective evidence of poor indoor air quality, excessive humidity, or unstable environmental conditions. Logged data strengthens snagging reports and supports developer rectification during the DLP period.

Laser Leveler

The laser leveler is a precision alignment tool used extensively during finishing and installation checks in property snagging. It projects perfectly straight horizontal and vertical laser lines, allowing inspectors to verify alignment with high accuracy.

During inspections, it is used to check:

• Floor and tile levelness
• Wall straightness and vertical alignment
• Cabinet, vanity, and kitchen installation accuracy
• Door frames, partitions, and ceiling works

In Dubai properties, even minor misalignment can lead to water pooling, uneven finishes, and visual defects. The laser leveler helps inspectors clearly demonstrate deviations that may not be obvious to the naked eye, ensuring finishing works meet acceptable standards.
